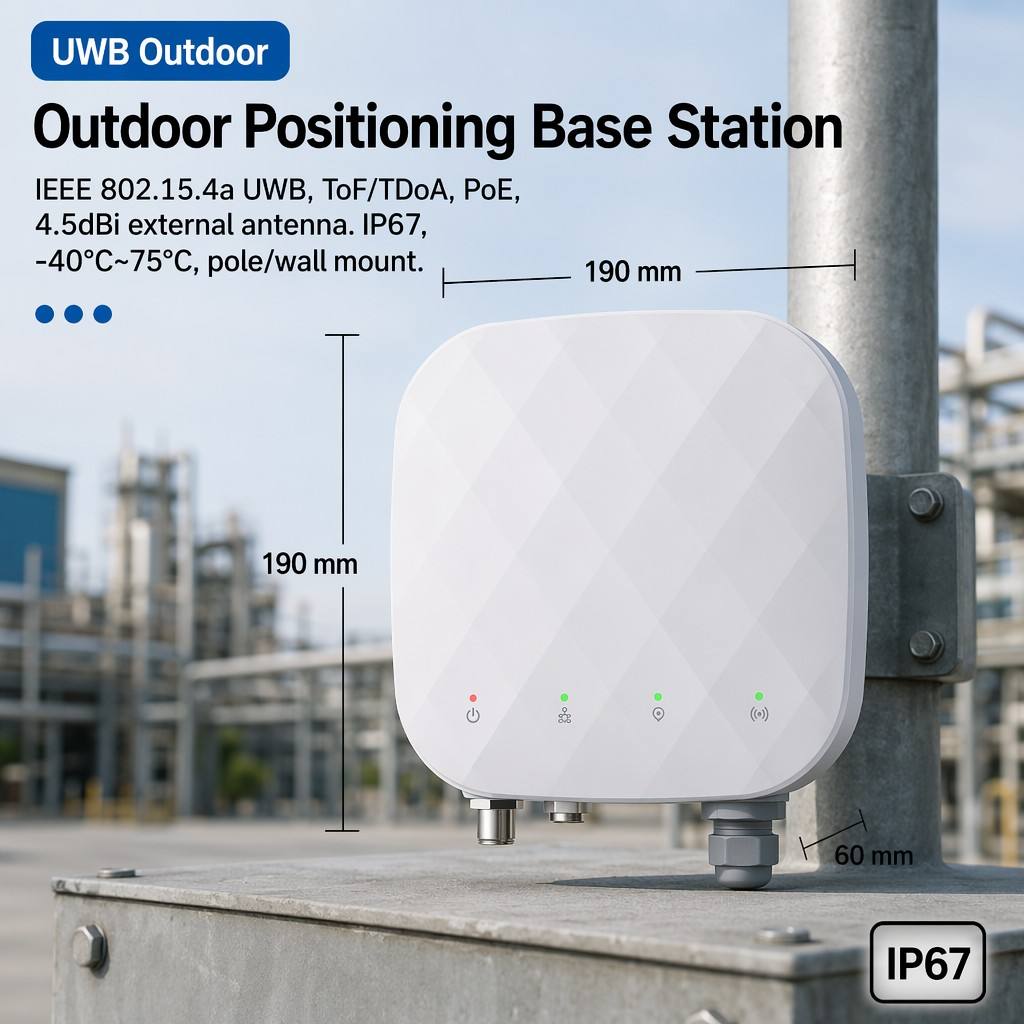

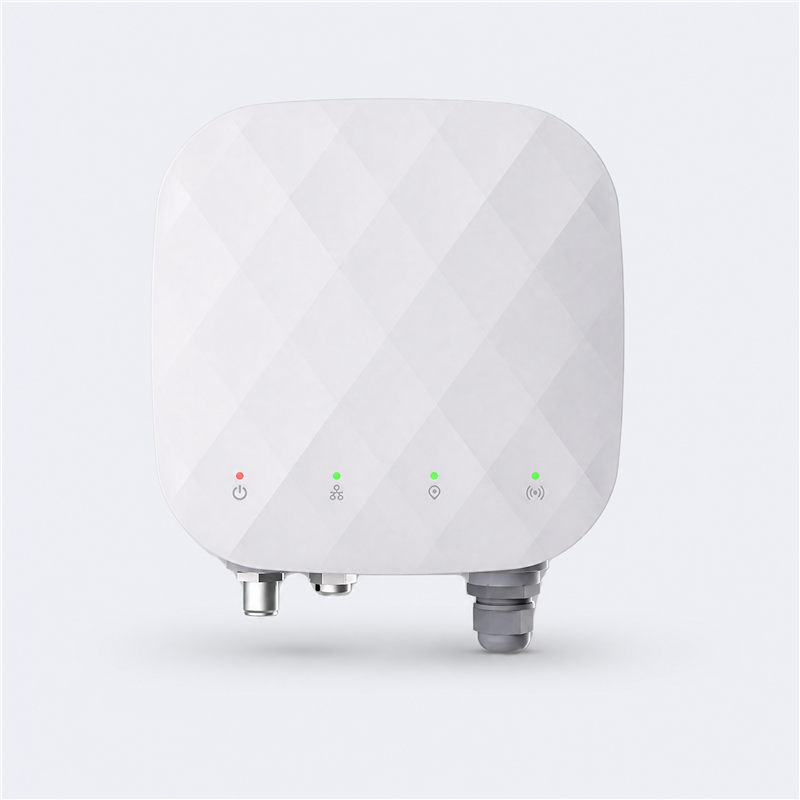

WE-RA210-O Outdoor Wired Positioning Base Station Active Electronic Tag Reader Positioning Accuracy10‑30 cm
- IEEE 802.15.4a UWB Wireless
- IEEE 802.3 AF/AT PoE power supply
- External omnidirectional high-gain antenna

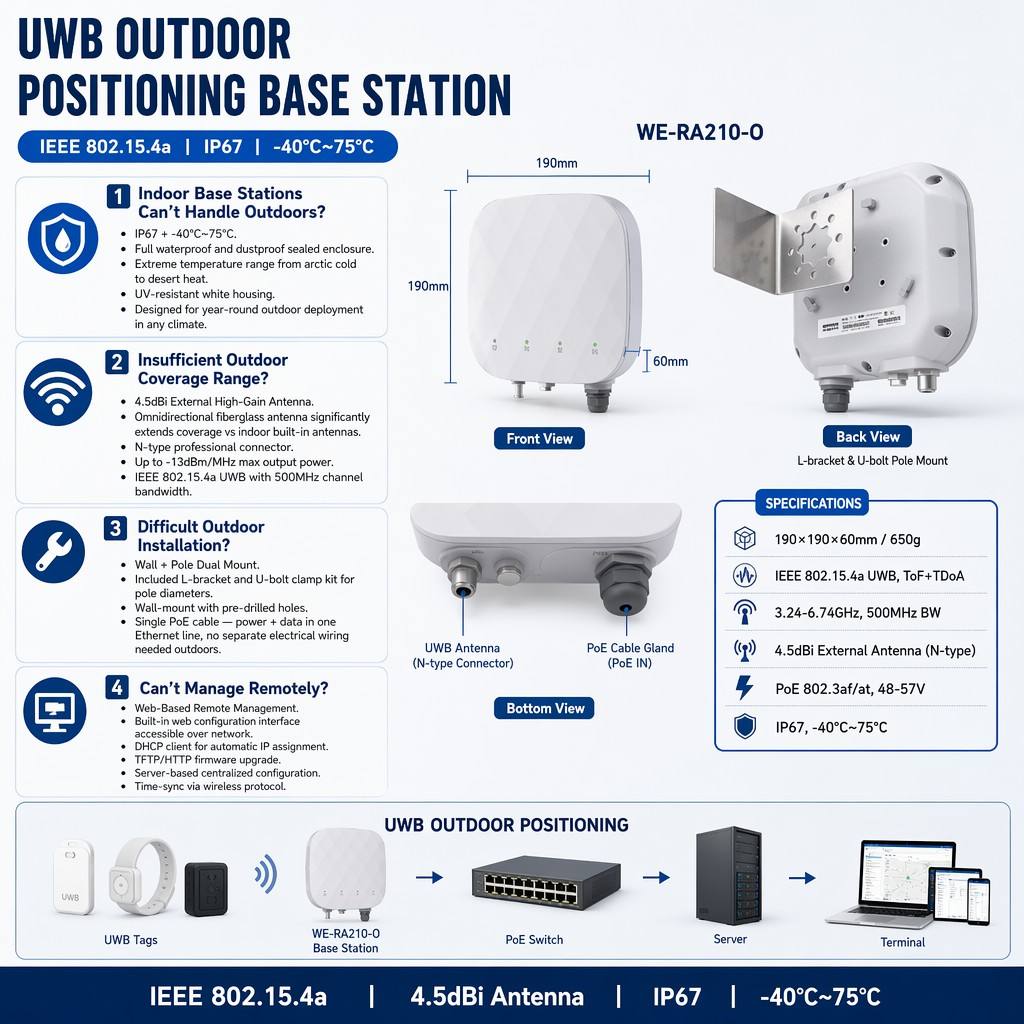

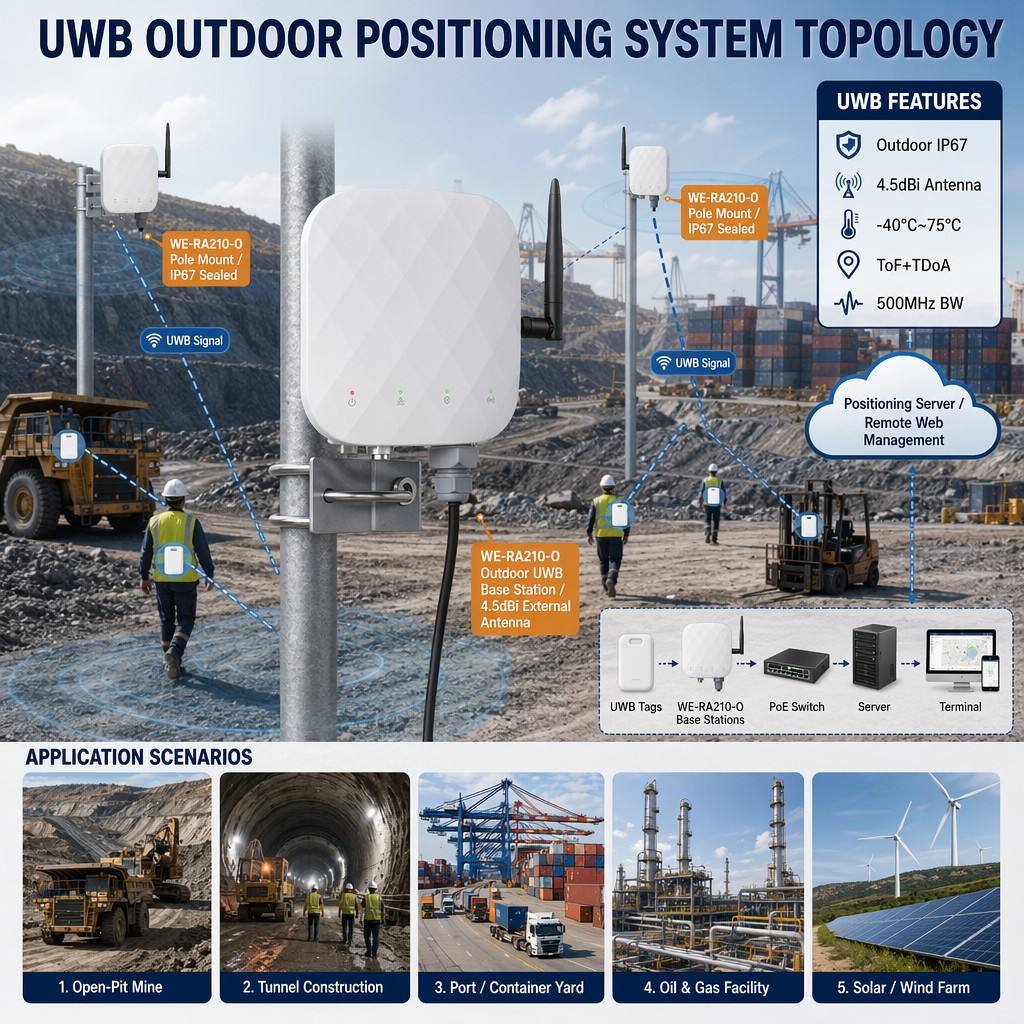

The WE-RA210-O is an IEEE 802.15.4a positioning base station designed by WEST, supporting both ToF and TDoA positioning methods. It is primarily used for long-range, high-precision positioning applications and can be deployed in scenarios such as factories, tunnels, and utility tunnels.
This device uses a wired backhaul connection and can be linked to the computing engine via a switch.
This device is powered via an Ethernet port and supports standard IEEE 802.3af/at PoE power delivery; it can be centrally managed using a PoE switch. The device supports two installation methods: wall-mounting or pole-mounting.
| project | description | ||
| summary | |||
| product name | WE-RA210-O | ||
| Related Specifications | IEEE 802.15.4a | ||
| IEEE 802.3 af/at | |||
| Interface | RJ45 10/100Mbps × 1 | ||
| N-type × 1 (UWB) | |||
| input voltage | 48~57V | ||
| Average power consumption | < 5W | ||
| way to install | Wall-mounted; Pole-mounted | ||
| RF Specifications (UWB) | |||
| Operating frequency band | 3.24GHz ~ 3.74GHz（channel1） | ||
| 3.77GHz ~ 4.24GHz（channel2） | |||
| 6.24GHz ~ 6.74GHz（channel5） | |||
| Physical Rate | 110 kbps | ||
| 850 kbps | |||
| 6.8 Mbps | |||
| Output power (25°C) | -41 dBm/MHz (typical value) | ||
| -13 dBm/MHz (maximum value) | |||
| channel width | 500MHz | ||
| antenna gain | 4.5 dBi | ||
| Software Specifications | |||
| UWBwork pattern | TDoA | ||
| TOF | |||
| time lock | Wireless Time Synchronization | ||
| Configuration Method | Server Configuration | ||
| Web page configuration | |||
| configuration management | Web-based User Management Interface (Remote/Local Management) | ||
| TFTP/HTTP Software Upgrade | |||
| networking protocol | DHCPclient | ||
| Uplink interface | Interface B | ||
| Physical Specifications | |||
| size | 190×190×60mm | ||
| weight | 650 g (excluding packaging) | ||
| environmental specification | |||
| temperature | Operating temperature: -40°C to 75°C | ||
| Storage temperature: -40°C to 85°C | |||
| humidity | Operating humidity: 0%–90% (no condensation) | ||
| waterproof and dustproof | IP67 | ||
| RoHs | compatible | ||
| SKU | WE-RA210-O |
|---|
